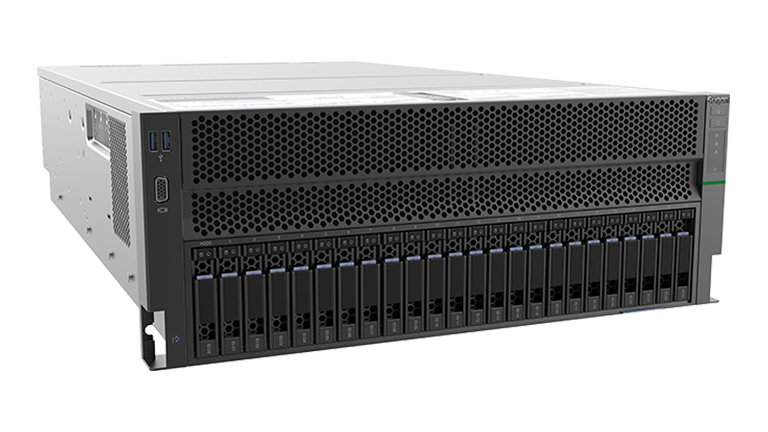

XSystem can provide users with advanced learning integration solutions, help users quickly into the field of Deep Learning, achieve rapid growth of enterprise applications, quickly transform scientific research into the first productive forces.
Brand new processor
This product could deliver higher performance for users' every application with the Intel's latest generation of Xeon Scalable family processors. Compared to the previous generations, the Intel Xeon Scalable family processors offer a significant improvement and better system performance, which could support more CPU cores and max DDR4 2666 memory. Besides, the efficiency of collaboration between CPUs could be significantly increased by using more and faster UPI bus.
CPU motherboard and GPU motherboard decoupled design, support CPU, GPU independent evolution, and different forms of acceleration card flexible configuration
Adjustable CPU, GPU topology for higher acceleration performance for different algorithm applications
21 PCIe 3.0 x16 slots provide a rich expansion interface for the system, supporting 100G EDR Infiniband network high-speed interconnect, providing a high-density, high-performance node platform for GPU computing clusters
Supported Intel Xeon Scalable product family，high-speed UPI interconnection bus（10.4/9.6/8.0/6.4 GT/s，speed is based on the types of CPU），large storage and level-three cache（15/20/25/30/35/38 MB，based on the types of CPU）
Supported max 16 DIMMs
Supported DDR4 RDIMM/LRDIMM 2666/2400/ 2133MHz REG（the frequency should be based on the type of CPU and the number of memories）
Supported max 24 2.5-inch hot-swappable hard drives（4 NVMe SSDs）
Supported 2 M.2 SATA SSDs
Intel I350 dual-port gigabit NIC，supported WOL、network redundancy、load balancing and other，supported OCP extension 10G/25G NIC
